1500W Electric Conversion Kit, DC 24V 36V 48V 60V Brushless Motor Speed 35A Controller with S866 LCD Panel, Bicycle Ebike for Mountain Bike Scooter
Specification Part Number 1bmashqr4c8612 Item Package Dimensions L x W x H 7.95 x 6.14 x 4.02 inches Package Weight 0.76 Kilograms
6.14 inches x 7.95 inches x 4.02 inches. Weight: 0.76 kg
Item Description

LCD Display: LCD display panel adopts high quality ABS material, which is light, rain proof, durable. LCD backlight display can clearly display status and data.

Controller Housing: Controller outer housing is metal material with grooves design, can protect the internal circuitry with good heat dissipation effect.

Good Helper: Electric bicycle motor controller can provide steady speed and sensitive control of braking and direction changes, able to meet most of your needs.

Suitable Model: Can be used for bicycle and scooter refitting lithium to electric riding, usually suitable for 1500W motor, providing a satisfying using experience.

Rich Content: There is a control, a panel and instructions included in the package, large quantity will be enough to meet your needs to upgrade your bike.

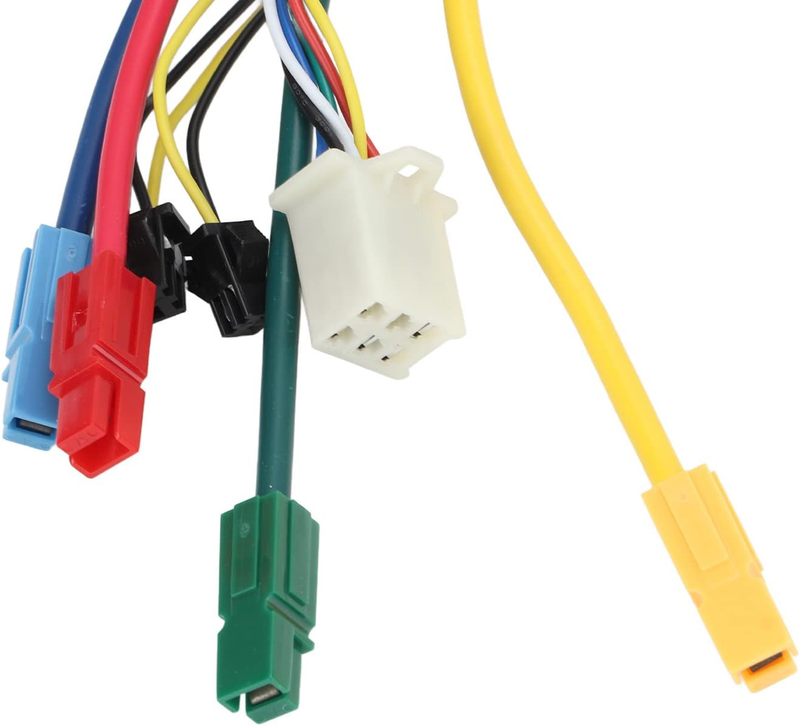

How to Use: Controller can achieve the function after connected to the corresponding line interface.Controller cable color definition: 1. Yellow, green and blue single big head wire: motor cable 2. Red, white, black, blue, green and yellow double row six wire port: motor cable 3. Red and black single big head: power cable 4. Red, blue, black, green and yellow single row five wire port: instrument cable 5. Black and yellow line (2) : power off brake handle cable 6. Red, black and white cable: thumb throttle cable 7. Brown, black and yellow line: Power sensor cable 8. Black and red wire (2) : headlight cable Specification: Item Type: Bike Conversion Kit Material: Aluminum Alloy + ABS Plastic Color: As Picture Shown Application: for Conversion, Upgrade Gross Weight: Approx.800g/28.2oz Product Size: Controller Box: Approx.185x84x42mm/7.3x3.3x1.7in Instrument: Approx. 81x48mm/3.2x1.9in Controller Rated Voltage: DC36V/48V Controller Maximum Current: 35A Controller Speed Setting: 1-4.2V Controller Brake Input: Low Level BOOSTER: 1:5 Applicable Motor Power: 1500W Instrument operating voltage: DC 24V, 36V, 48V, 60V compatible (Panel selects Settings). Package List: 1 x Controller 1 x Controller Wiring Instruction 1 x Display Panel 1 x Display Panel Instruction About us
